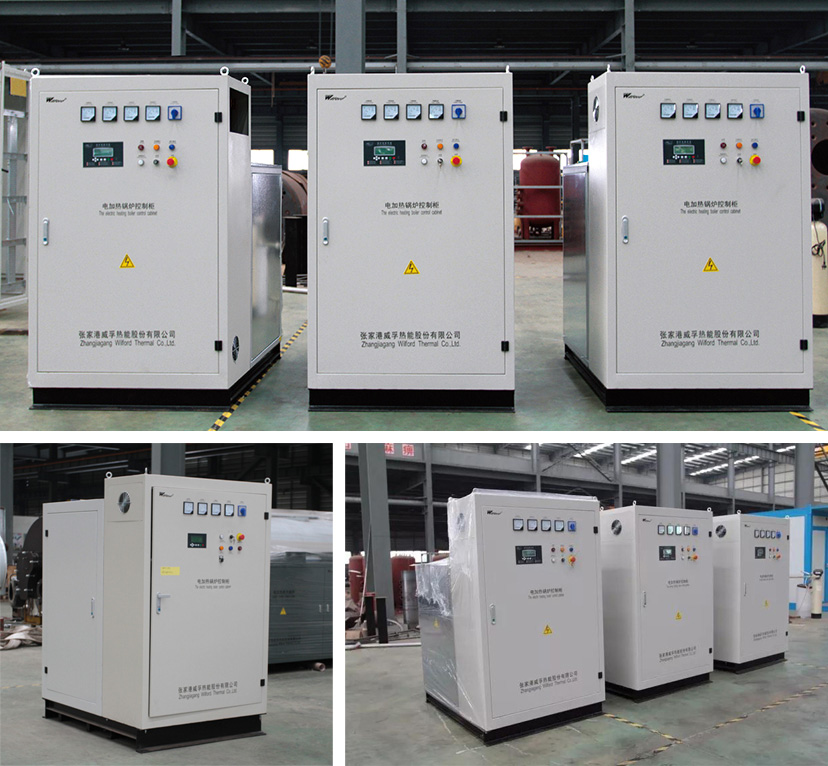

CLDR series electric heating hot water Boiler

Home » CLDR series electric heating hot water Boiler

Product Description

Rated thermal power: 0.35 MW; Rated working pressure: Ordinary pressure; Total heating capacity: 300,000 kcal; Input power: 360 kW; Rated voltage: 3N AC 50Hz 380V; No noise, no pollution, clean and sanitary, truly real green products. Using electricity as the heating source, no smoke-output loss, heating efficiency can reach up to 98%. Using high-quality stainless-steel or alloy-steel electric-heating tubes to ensure long-term boiler-safety operation.

Technical Parameters

Type			CLDR0.03-85/60	CLDR0.045-85/60	CLDR0.06-85/60	CLDR0.075-85/60	CLDR0.09-85/60	CLDR0.105-85/60	CLDR0.12-85/60	CLDR0.15-85/60	CLDR0.18-85/60	CLDR0.2-85/60	CLDR0.25-85/60	CLDR0.3-85/60	CLDR0.36-85/60	CLDR0.4-85/60	CLDR0.45-85/60	CLDR0.5-85/60	CLDR0.54-85/60	CLDR0.6-85/60	CLDR0.65-85/60
Project		Unit	CLDR0.03-85/60	CLDR0.045-85/60	CLDR0.06-85/60	CLDR0.075-85/60	CLDR0.09-85/60	CLDR0.105-85/60	CLDR0.12-85/60	CLDR0.15-85/60	CLDR0.18-85/60	CLDR0.2-85/60	CLDR0.25-85/60	CLDR0.3-85/60	CLDR0.36-85/60	CLDR0.4-85/60	CLDR0.45-85/60	CLDR0.5-85/60	CLDR0.54-85/60	CLDR0.6-85/60	CLDR0.65-85/60
Rated heating capacity		MW	0.03	0.045	0.06	0.075	0.09	0.105	0.12	0.15	0.18	0.2	0.25	0.3	0.36	0.4	0.45	0.5	0.54	0.6	0.65
Total heating capacity		104kcal	2.5	3.8	5.0	6.3	7.5	8.8	10.0	12.5	15.0	16.7	20.8	25.0	30.0	33.3	37.5	41.7	45.0	50.0	54.2
Rated working pressure		MPa	Ordinary pressure
Input Power		KW	30	45	60	75	90	105	120	150	180	200	250	300	360	400	450	500	540	600	650
Input current		A	45	67.5	90	112.5	135	157.5	180	225	270	300	375	450	540	600	675	750	810	900	975
Rated Voltage		V	3PN 380 50Hz
a Water outlet diameter		DN	40	40	40	40	40	50	50	50	50	50	65	65	65	65	65	80	80	80	80
b Water inlet diameter		DN	40	40	40	40	40	50	50	50	50	50	65	65	65	65	65	80	80	80	80
c Water return diameter		DN	40	40	40	40	40	50	50	50	50	50	65	65	65	65	65	80	80	80	80
d Blowoff Valve diameter		DN	20	20	20	20	20	25	25	40	40	40	40	40	40	40	40	40	40	40	40
e Expansion tube diameter		DN	40	40	40	40	40	50	50	50	50	50	65	65	65	65	65	80	80	80	80
Overall size	Length	L mm	750	750	750	750	750	750	750	1200	1200	1200	1200	1200	1600	1600	1600	1600	1600	1600	1600
	Width	W mm	650	650	650	650	650	650	650	1100	1100	1100	1100	1100	1200	1200	1200	1350	1350	1350	1350
	Height	H mm	1380	1380	1380	1380	1380	1380	1380	1900	1900	1900	1900	1900	2000	2000	2000	2200	2200	2200	2200
Weight		kg	140	150	160	170	180	190	200	450	485	520	555	590	620	665	710	755	800	845	890

Project Case

Uruguay-for Wool cleaning

China-for city central heating during winter

Portugal -2300KW Gas thermal oil heater -for car spare parts equipment -Gas burner type

Bolivia -1200KW thermal oil heater -for asphalt equipment -dual burner type

Company Information

Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements. Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.

One Solution, One Partner

We supply the whole solution of boilers and boiler systems — from selection to installation support.
