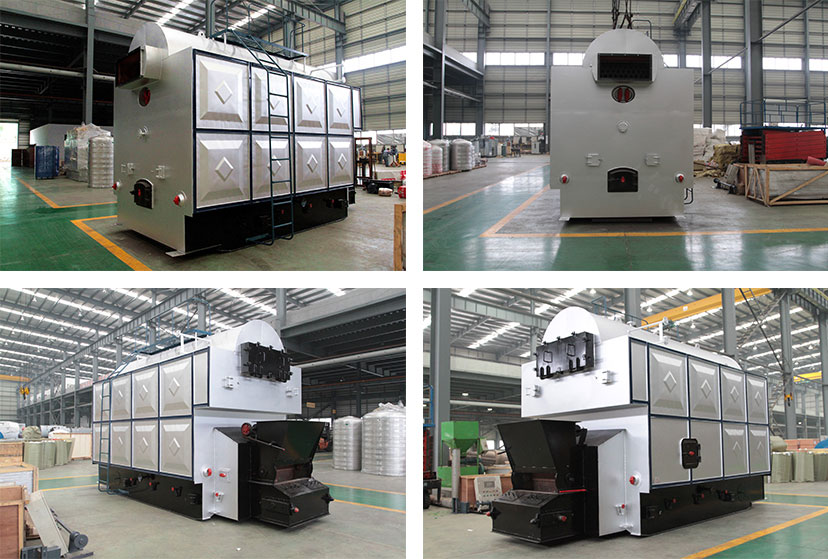

DZL series Coal-fired/biomass Steam Boiler
Fill out my online form.
Product Description
Rated steam capacity: 1–10 T/h; Rated working pressure: 0.7/1.0/1.25/1.6/2.5 MPa; Saturated steam temperature: 170/184/194/203/226℃; Feed temperature: 20/60/105℃; Fuel: Coal-fired/biomass, etc. Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc. The coal-fired/biomass steam boiler adopts the latest research results, such as: arched tube plate, screw-thread smoke tube, hot-water boiler backwater ejection technology.
Technical Parameters
| DZL Coal-fired/biomass Steam Boiler | |||||||||
| Type | DZL1 | DZL2 | DZL3 | DZL4 | DZL6 | DZL8 | DZL10 | ||
| Project | Unit | ||||||||
| Rated enaporation | T/h | 1 | 2 | 3 | 4 | 6 | 8 | 10 | |
| The rated steam pressure | Mpa | 0.7、1.0、1.25、1.6、2.5 | |||||||
| The rated steam temperature | ℃ | 170、184、194、203、226 | |||||||
| Feed temperature | ℃ | 20、60、105 | |||||||
| Avaible fuel | (AⅡ) | ||||||||
| Design the thermal efficiency | % | 80.2 | 80.1 | 80.3 | 80.6 | 80.3 | 80.5 | 80.6 | |
| The fuel consumption | Kg/h | 181 | 378.4 | 493 | 723 | 1089 | 1509 | 1750 | |
| The transport dimension L*W*H(mm) | mm | 5200*2100*3000 | 5525*2440*3400 | 6300*2650*3400 | 6081*2575*3400 | 8000*2900*3550 | 7526*3340*4300 | 8980*3200*3550 | |
| Boiler installation structure | The fast The assembly | ||||||||
