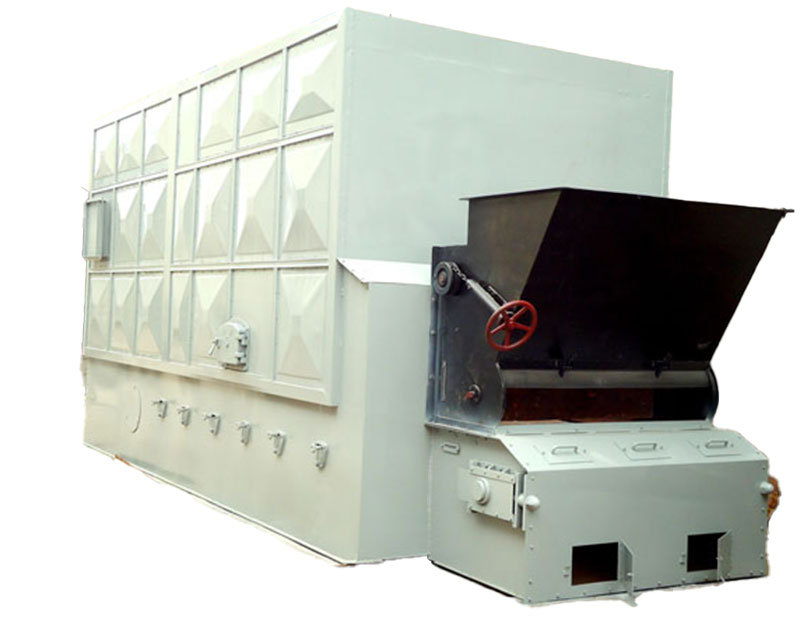

Horizontal chain grate hot blast stove parameter
Fill out my online form.
Technical Parameters
| Model | WDK40 | WDK60 | WDK80 | WDK100 | WDK120 | WDK160 | WDK180 | WDK200 | WDK240 | WDK300 | WDK350 |
| Project | |||||||||||
| Rated heating capacity(x10^6kj/h) | 1.67 | 2.51 | 3.35 | 4.19 | 5.02 | 6.70 | 7.54 | 8.37 | 10.05 | 12.56 | 14.65 |
| Rated coal consumption(kg/h) | 97 | 145 | 194 | 242 | 291 | 388 | 436 | 485 | 582 | 727 | 848 |
| Hot output air diameter(mm) | 450 | 550 | 600 | 630 | 700 | 800 | 850 | 850 | 900 | 1000 | 1050 |
| Output capacity of hot air m³/h | 9727 | 14591 | 19455 | 24318 | 29181 | 38908 | 43773 | 48635 | 58362 | 73000 | 85113 |
| Model | WDK400 | WDK500 | WDK600 | WDK700 | WDK800 | WDK900 | WDK1000 | WDK1200 | WDK1600 | WDK2000 | WDK2400 |
| Project | |||||||||||
| Rated heating capacity(x10^6kj/h) | 16.7 | 20.9 | 25.08 | 29.26 | 33.44 | 37.62 | 41.8 | 50.16 | 66.88 | 83.6 | 100.32 |
| Rated coal consumption(kg/h) | 970 | 1212 | 1454 | 1697 | 1939 | 2182 | 2424 | 2909 | 3879 | 4848 | 5818 |
| Hot output air diameter(mm) | 1300 | 1500 | 1550 | 1700 | 1840 | 2000 | 2100 | 2300 | 2800 | 3200 | 3500 |
| Output capacity of hot air m3/h | 97300 | 121800 | 146000 | 170000 | 194600 | 219100 | 243600 | 291800 | 389000 | 486500 | 583600 |
| Design thermal efficiency(%) | WDK 型:≥ 74〜75; ZDK 型:≥ 88〜90 | ||||||||||
| Hot air temperature°C | ZDK≥1100°C, WDK350°C (Special design highest650°C ) | ||||||||||
| Fuel type | Bituminous coalII》5000kcal/kg) | ||||||||||
| Exhaust gas temperature(°C) | ≤160〜200 (Depending on fuel and working temperature) | ||||||||||
