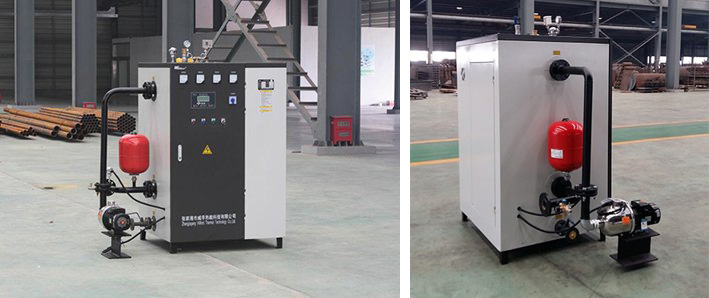

LDR Series Electric Heating Pressure Hot Water Boiler
Fill out my online form.
Product Description
Rated thermal power: 0.06–0.53 MW; Rated working pressure: 0.7 MPa; Saturated water temperature: 95℃; Return water temperature: 70℃; Input power: 60–540 kW; Rated voltage: 3N AC 50Hz 380V; Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc. Boiler furnace operates under pressure, with double control of pressure and temperature, with no hidden safety troubles. Hot-water boiler – advanced touch-screen controller, digital control system.

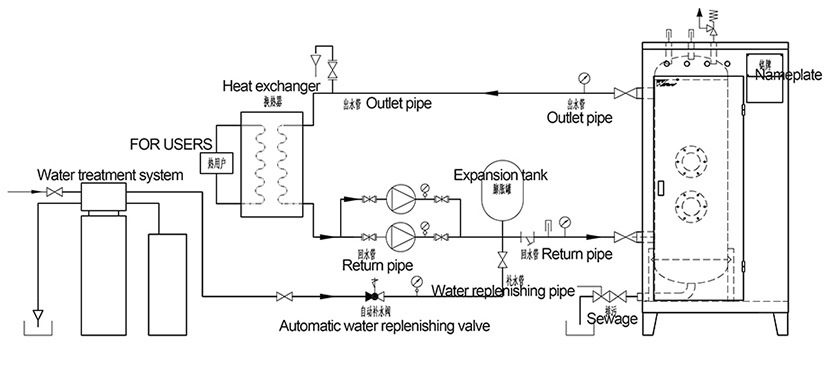

Product system drawings
Technical Parameters
| LDR Electric Heating Pressure Hot Water Boiler | |||||||||
| Type | LDR0.06-0.7-95/70 | LDR0.09-0.7-95/70 | LDR0.12-0.7-95/70 | LDR0.18-0.7-95/70 | LDR0.23-0.7-95/70 | LDR0.35-0.7-95/70 | LDR0.47-0.7-95/70 | LDR0.53-0.7-95/70 | |
| Project | Unit | ||||||||
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Staturated water temperature/Reture water temperature | ℃ | 95/70 | 95/70 | 95/70 | 95/70 | 95/70 | 95/70 | 95/70 | 95/70 |
| Input Power | KW | 60 | 90 | 120 | 180 | 240 | 360 | 480 | 540 |
| Input current | A | 90 | 135 | 180 | 270 | 360 | 540 | 720 | 810 |
| Rated voltage | V | 3N AC 50Hz 380V | |||||||
| Power×Group | KW×P | 15×4 | 15×6 | 15×8 | 25×6+15×2 | 25×9+15 | 36×10 | 36×12+25×2 | 36×15 |
| aWater outlet diameter | DN | 50 | 50 | 50 | 50 | 50 | 80 | 80 | 80 |
| b Water return diameter | DN | 50 | 50 | 50 | 50 | 50 | 80 | 80 | 80 |
| c Water inlet diameter | DN | 15 | 15 | 15 | 15 | 15 | 25 | 25 | 25 |
| d Blowoff Valve diameter | DN | 25 | 25 | 25 | 40 | 40 | 40 | 40 | 40 |
| e Safety valve diameter | DN | 15 | 15 | 15 | 25 | 25 | 40 | 40 | 40 |
| Overall size | L mm | 750 | 750 | 750 | 1200 | 1200 | 1600 | 1600 | 1600 |
| W mm | 650 | 650 | 650 | 1100 | 1100 | 1200 | 1350 | 1350 | |
| H mm | 1380 | 1380 | 1380 | 1900 | 1900 | 2000 | 2200 | 2200 | |
| LDR0.53 and above, the structure is separated, with independent control cabinet. | A mm | – | – | – | – | – | 1200 | ||
| B mm | – | – | – | – | – | 600 | |||
| C mm | – | – | – | – | – | 1800 | |||
| Weight | kg | 180 | 200 | 235 | 485 | 525 | 620 | 710 | 820/1350 |
| Following are National inspection-free hot water boiler with pressure ( tap water pressure only ) | |||||||||
