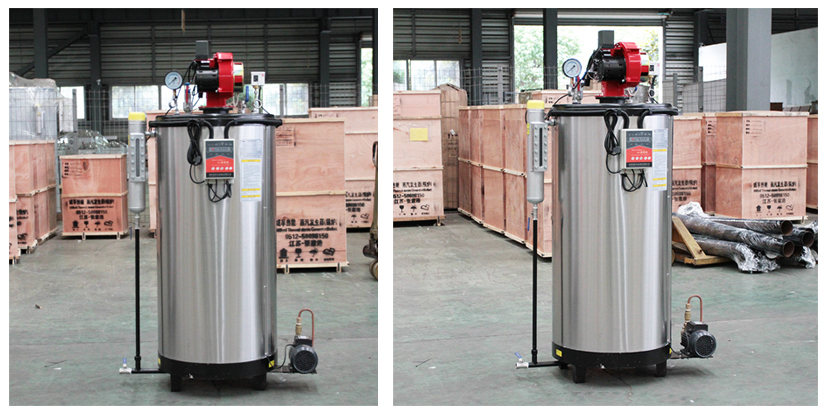

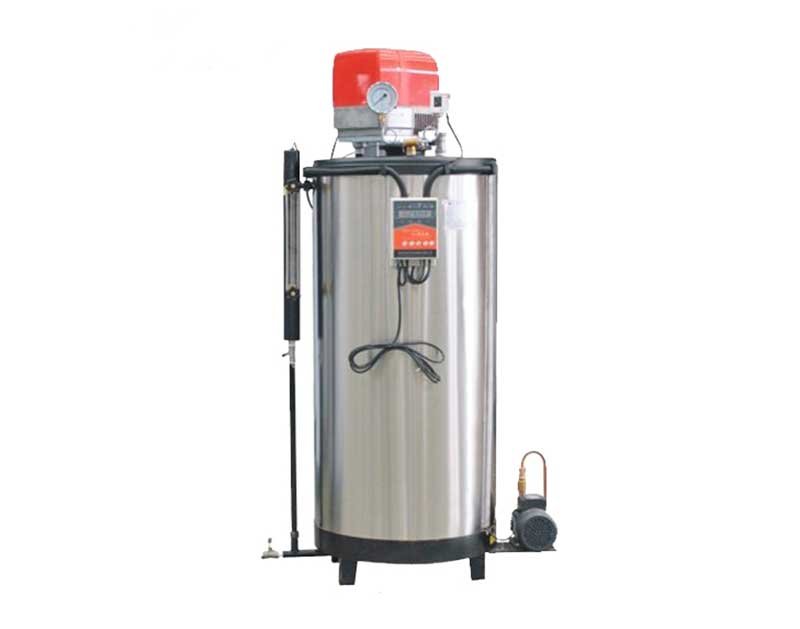

LSS Series Oil (gas) Fired Boiler
Fill out my online form.
Product Description
0.05–0.5T 0.7–1.25 MPa
Rated steam capacity: 100 kg/h; Rated working pressure: 0.7 MPa; Saturated steam temperature: 170℃; Fuel: Natural gas, diesel oil, LPG, pipeline gas, etc. Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc. Boiler water volume is small, with quick start of cold furnace, which can realize temperature and pressure rise during a short period of time. Built-in multi steam-and-water separation technology, quality steam.
Rated steam capacity: 100 kg/h; Rated working pressure: 0.7 MPa; Saturated steam temperature: 170℃; Fuel: Natural gas, diesel oil, LPG, pipeline gas, etc. Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc. Boiler water volume is small, with quick start of cold furnace, which can realize temperature and pressure rise during a short period of time. Built-in multi steam-and-water separation technology, quality steam.
1.Boiler water volume is small, with quick start of cold furnace, which can realize temperature and pressure rise during a short period of time.
2.Built-in multi steam and water separation technology, quality steam.
3.With multiple chain protection for water level, steam pressure, over heating ,which is safe and reliable.
4.Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control, exempted of installation and design.
2.Built-in multi steam and water separation technology, quality steam.
3.With multiple chain protection for water level, steam pressure, over heating ,which is safe and reliable.
4.Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control, exempted of installation and design.

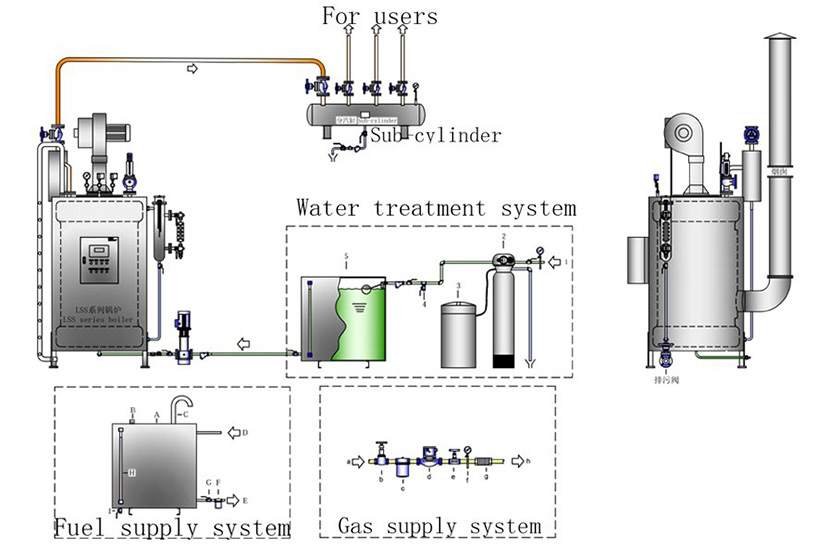

Product system Drawings
Technical Parameters
| LSS National inspection-free oil(gas )steam generator | |||||||||
| Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
| Project | Unit | ||||||||
| Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
| Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
| Natural gas | Nm³/h | 3.5 | 7.3 | 9.2 | 14.5 | 19 | 22 | 36.5 | |
| LPG | Nm³/h | 3.3 | 5.7 | 7.2 | 11.4 | 7.5 | 17.3 | 28.7 | |
| City gas | Nm³/h | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | |
| Water capacity | L | 29 | 49.3 | 49.3 | 49.5 | 49.5 | 49.5 | 49.6 | |
| a Main steam valve diameter | DN | 15 | 25 | 25 | 32 | 32 | 32 | 50 | |
| b Safety valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 40 | |
| c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| d Blowoff Valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 25 | |
| Chimney diameter | DN | 80 | 125 | 125 | 150 | 150 | 150 | 250 | |
| Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1500 | 1800 |
| W | mm | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | |
| H | mm | 1600 | 1800 | 1900 | 1000 | 2200 | 2200 | 2350 | |
| Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 | |
Company Information
Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements. Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.
One Solution, One Partner
We supply the whole solution of boilers and boiler systems — from selection to installation support.
