LSS Vertical Water Tube Gas-Oil Steam Boiler
Fill out my online form.
Product Description
Rated Steam Capacity: 0.5–2 t/h; Rated Working Pressure: 0.7/1.0/1.25 MPa; Saturated steam temperature: 170/193℃; Fuel: Natural gas, diesel oil, LPG, pipeline gas, etc. LSS series products – water-tube structure, vertical three-return and burner-on-top design. Quickly start up, achieving high temperature and pressure in a short time. With multi-chain protection for water level and steam pressure.
1.Quickly start up, achieving high temperature and pressure in short time.
2.Nature circle, could undertake large temperature difference.
3.With multi chain protection for water level and steam pressure.
4.Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.
2.Nature circle, could undertake large temperature difference.
3.With multi chain protection for water level and steam pressure.
4.Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.

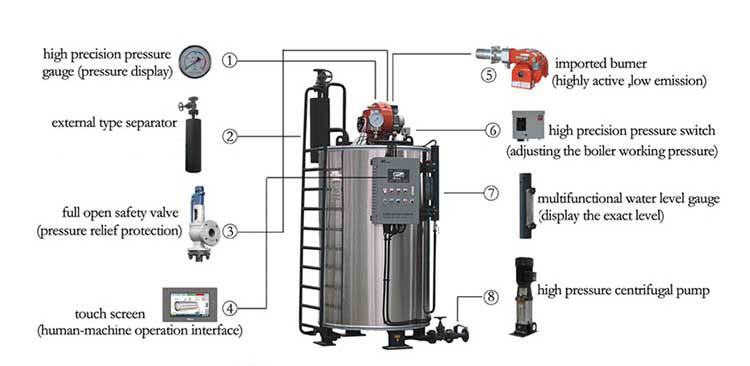

Product system Drawings
Technical Parameters
| LSS Vertical Oil（gas）Fired Steam Boiler | ||||||
| Type | LSS0.5 | LHS1 | LHS1.5 | LHS2 | ||
| Project | Unit | |||||
| Rated evaporation | t/h | 0.5 | 1 | 1.5 | 2 | |
| Rated working pressure | MPa | 0.7/1.0 | 1.0/1.25 | 1.0/1.25 | 1.0/1.25 | |
| Staturated steam temperature | ℃ | 170/193 | 184/193 | 184/193 | 184/193 | |
| Fuel consumption | Light diesel oil | kg/h | 35 | 70 | 105 | 140 |
| Natural gas | Nm³/h | 40 | 80 | 120 | 160 | |
| LPG | Nm³/h | 15 | 30 | 45 | 60 | |
| City gas | Nm³/h | 85 | 170 | 265 | 340 | |
| a Main steam valve diameter | DN | 40 | 50 | 65 | 80 | |
| b Safety valve diameter | DN | 40 | 50 | 50 | 40×2 | |
| c Inlet diamater | DN | 25 | 25 | 32 | 40 | |
| d Blowoff Valve diameter | DN | 25 | 40 | 40 | 40 | |
| e Chimney diameter | DN | 250 | 350 | 400 | 500 | |
| Overall size | L | mm | 1830 | 1980 | 2045 | 2550 |
| W | mm | 1780 | 1980 | 2220 | 2780 | |
| H | mm | 2650 | 3080 | 3380 | 3620 | |
| H1 | mm | 2100 | 2300 | 2650 | 2880 | |
| φDiameter | mm | 1180 | 1380 | 1680 | 1980 | |
| Weight | T | 1.8/2.2 | 2.3/2.8 | 3.3/4 | 4.3/5.2 | |
