LWS Series Oil (gas) Fired Steam Boiler
Fill out my online form.
Product Description
Rated steam capacity: 100–300 kg/h; Rated working pressure: 0.7 MPa; Saturated steam temperature: 170℃; Fuel: Natural gas, diesel oil, LPG, pipeline gas, etc. Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc. Containing no water pipes or fire tubes, which is exempt from explosion of tubes. Boiler will not burn down because of scaling, which reduces maintenance cost.
■ Containing no water pipes or fire tubes, which is exempt from exploding of tubes.
■ Boiler will not burn down because of scaling, which reduces the maintenance cost.
■ The upper ring large steam room and separation measures for boiler and steam blow water can ensure the availability of high-quality steam.
■ Double W-shaped four -pass has big heat transfer coefficient and full heat exchange.
■ Low exhaust temperature, high thermal efficiency and long service life.
■ The vertical structure is compact and beautiful, which saves space and easy for installation.
■ Boiler will not burn down because of scaling, which reduces the maintenance cost.
■ The upper ring large steam room and separation measures for boiler and steam blow water can ensure the availability of high-quality steam.
■ Double W-shaped four -pass has big heat transfer coefficient and full heat exchange.
■ Low exhaust temperature, high thermal efficiency and long service life.
■ The vertical structure is compact and beautiful, which saves space and easy for installation.

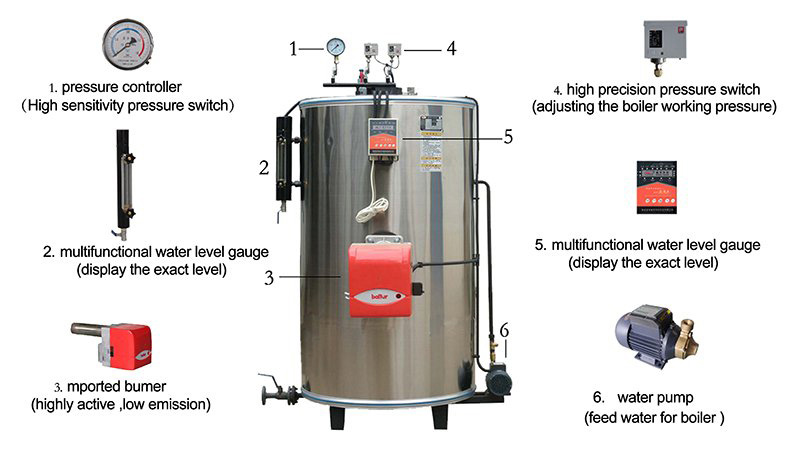

Product system Drawings
Technical Parameters
| LWS Vertical Oil Gas Steam Boiler | ||||||
| Model | LWS0.1-0.7-Y.Q | LWS0.15-0.7-Y.Q | LWS0.2-0.7-Y.Q | LWS0.3-0.7-Y.Q | ||
| Item | unit | |||||
| Rated evaporation | kg/h | 100 | 150 | 200 | 300 | |
| Rated working pressure | Mpa | 0.7 | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | |
| Feed water temperature | ℃ | 20 | 20 | 20 | 20 | |
| Weight | T | 0.6 | 0.68 | 0.8 | 1.1 | |
| Water capacity | L | 49 | 190 | 220 | 280 | |
| fuelconsumption | Light diesel oil | Kg/h | 6 | 9 | 12 | 18 |
| natural gas | Nm3/h | 9.1 | 13.7 | 18.2 | 27.3 | |
| LPG | L/h | 14.2 | 21.3 | 28.4 | 42.5 | |
| a main steam valve | mm | 25 | 25 | 32 | 32 | |
| b safety valve | mm | 25 | 25 | 25 | 25 | |
| c water inlet | mm | 15 | 15 | 15 | 15 | |
| d drain valve | mm | 20 | 25 | 25 | 25 | |
| e chimney | mm | 133 | 159 | 159 | 219 | |
| Overall size | L | mm | 1020 | 1150 | 1150 | 1270 |
| W | mm | 1080 | 1260 | 1260 | 1570 | |
| H | mm | 1750 | 1840 | 2140 | 2400 | |
| H1 | mm | 1480 | 1520 | 1820 | 2090 | |
