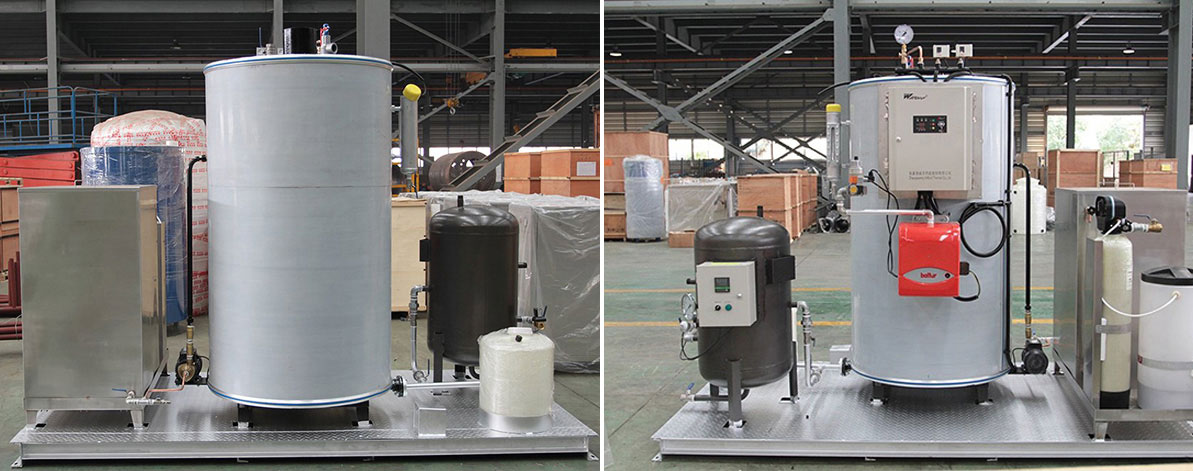

Gas-Oil Fired Skid-Mounted Boiler

Home » Oil/Gas fired boiler » Gas-Oil Fired Skid-Mounted Boiler

0.7-1.25 Mpa
Rated steam capacity :100-300kg/h; Rated working pressure :0.7Mpa; Staturated steam temperature :170℃; Fuel :Natural gas, diesel oil, LPG, Pipeline gas, etc. Industry :Foods, Garment, Taextile, Paper, Brewery, Ricemill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc.Fully skid-mounted design .Boiler and all auxiliary parts arrange together on one down base .Free of installation .Fully skid mounted boiler system –production and assembly all finished before cargo delivery.

Product Description

1.Fully skid-mounted design.
2.Boiler and all auxiliary parts arrange together on one down base .Free of installation .
3.Current all type boilers could arrange skid-mounted .
4.Fully skid mounted boiler system –production and assembly all finished before cargo delivery .
5.User only need to arrange for necessary connection as well as electricity supply is enough .All system on one down base ,easily for move .
6.Fully skid mounted system covers less room space .Easily for handling and operation .

Technical Parameters

LWS series skid-mounted boiler
Model			LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Item		unit	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Rated evaporation		kg/h	100	150	200	300
Rated working pressure		Mpa	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170
Feed water temperature		℃	20	20	20	20
Weight		T	0.6	0.68	0.8	1.1
Water capacity		L	49	190	220	280
fuelconsumption	Light diesel oil	Kg/h	6	9	12	18
	natural gas	Nm3/h	9.1	13.7	18.2	27.3
	LPG	L/h	14.2	21.3	28.4	42.5
a main steam valve		mm	25	25	32	32
b safety valve		mm	25	25	25	25
c water inlet		mm	15	15	15	15
d drain valve		mm	20	25	25	25
e chimney		mm	133	159	159	219
Overall size	L	mm	1020	1150	1150	1270
	W	mm	1080	1260	1260	1570
	H	mm	1750	1840	2140	2400
	H1	mm	1480	1520	1820	2090

Project Case

Uruguay-for Wool cleaning

China-for city central heating during winter

Portugal -2300KW Gas thermal oil heater -for car spare parts equipment -Gas burner type

Bolivia -1200KW thermal oil heater -for asphalt equipment -dual burner type

Company Information

Wilford company is specialized in manufacturing the medium and small sized boilers with high quality to solve the high energy efficiency requirements of customers in industrial and commercial fields for steam and heat sources. We supply the whole solution of boilers and boiler systems, reduce energy consumption, save operating costs for each plant, enhancing the environmental protection requirements. Since 1998, the company are insisted on intelligent and lean production as the leading factor to ensure that each product is super safe and high quality. The fuel, gas and electric heating boilers have high technical content. The company has won many inventions, many high-tech products and new technology and new product awards. We regard the boiler’s efficiency index and extremely low nitrogen emission requirements as the main innovation objectives, Keep unremitting efforts in the environmental protection and energy saving of boilers.
