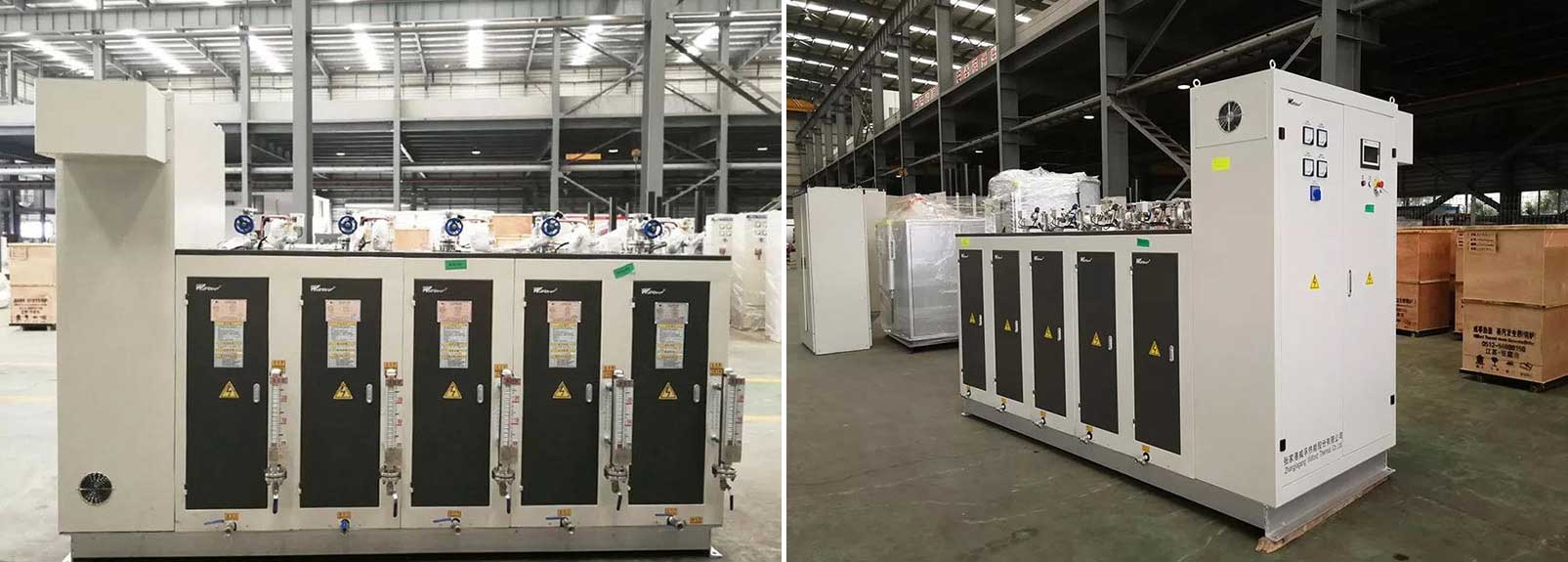

WFD Electric Heating Steam Generator
Fill out my online form.
Product Description
Rated steam capacity: 1 t/h; Rated working pressure: 1.0/1.25 MPa; Saturated steam temperature: 184/193℃; Input power: 720 kW; Rated voltage: 3N AC 50Hz 380V; Fuel: Electric heating, etc. Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc. Safety furnace liner structure, built-in high-efficiency steam-water separation device.
■ Adopt European-brand heating tube, Incoloy 800 stainless steel material (performance far exceeds 316L material), with superior anti-scale and corrosion resistance.
■ Adopt French Schneider brand contactor, high efficiency, sensitive action, long life, and low noise.
■ Adopt Siemens circuit breaker.
■ Use German WIKA pressure gauge, high precision, reliable and stable operation.
■ The equipment is fully automatic and unattended. The operation is simple; the operating status is shown on a color LCD display, with fault indication.
■ Optional additional functions such as remote start and stop, pure-water and clean models.
■ Adopt French Schneider brand contactor, high efficiency, sensitive action, long life, and low noise.
■ Adopt Siemens circuit breaker.
■ Use German WIKA pressure gauge, high precision, reliable and stable operation.
■ The equipment is fully automatic and unattended. The operation is simple; the operating status is shown on a color LCD display, with fault indication.
■ Optional additional functions such as remote start and stop, pure-water and clean models.
Technical Parameters
| WFD National Inspection-free Electrical Steam Generator | |||||||||
| Type | WDR0.15-0.7 | WDR0.2-0.7 | WFD0.4-0.7 | WFD0.6-0.7 | WFD0.8-0.7 | WFD1.0-0.7 | WFD1.2-0.7 | ||
| Project | Unit | ||||||||
| Rated evaporation | t/h | 0.15 | 0.2 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | |
| Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
| Input Power | KW | 108 | 144 | 288 | 432 | 576 | 720.00 | 864.00 | |
| Input current | A | 144 | 216 | 435 | 650 | 865.00 | 1080.00 | 1300 | |
| Rated pressure | V | 380V | |||||||
| Power×Group | KW×P | 36KW*3 | 36KW*4 | 36KW*8 | 36KW*12 | 36KW*16 | 36KW*20 | 36KW*24 | |
| a Main steam valve diameter | DN | 25 | 25 | 40 | 40 | 50 | 50 | 65 | |
| b Safety valve diameter | DN | 25 | 25 | 25*2 | 25*3 | 25*4 | 25*5 | 25*6 | |
| c Inlet diamater | DN | 15 | 15 | 25 | 25 | 25 | 40 | 40 | |
| d Blowoff Valve diameter | DN | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Overall size | L | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| W | mm | 700 | 700 | 1400 | 2100 | 2800 | 3500 | 4200 | |
| H | mm | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | |
| Weight | T | 200 | 200 | 400 | 650 | 820 | 1100 | 1300 | |
