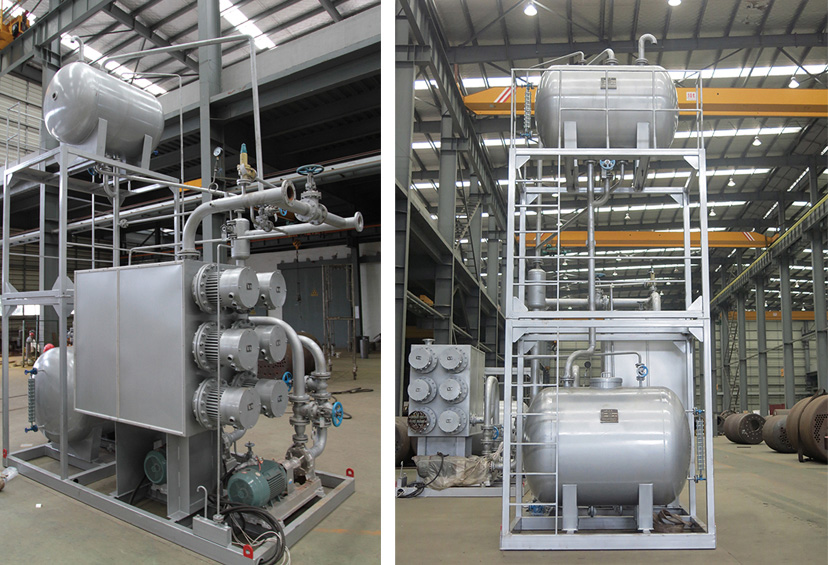

YDW Electric Thermal Oil Heater
Fill out my online form.
Product Description
Rated thermal power: 24–1440 kW; Oil capacity: 0.015–1.3 m³; Working pressure: 0.22–0.8 MPa; Design pressure: 0.6–1 MPa; Whole installed capacity: 28–1550 kW; Electric-heating thermal oil heater is a new type of special industrial boiler that is safe, energy-efficient, low-pressure (normal pressure or lower gas pressure), and can provide high-temperature heat energy.
1. Electric heating thermal oil heater is a new type of special industrial boiler that is safe, energy efficient, low pressure (normal pressure or lower gas pressure) and can provide high temperature heat energy.
2. The thermal oil is used as a heat carrier, and the heat carrier is circulated by the hot oil pump to transfer heat to the heat device.
3. The electric heating thermal oil system is combined into an armor by an explosion-proof electric heater, an organic heat carrier furnace, a hot oil pump, an expansion tank, and the like.
4. The user only needs to access the power supply, the inlet and outlet pipes of the medium and some electrical interfaces to use.
2. The thermal oil is used as a heat carrier, and the heat carrier is circulated by the hot oil pump to transfer heat to the heat device.
3. The electric heating thermal oil system is combined into an armor by an explosion-proof electric heater, an organic heat carrier furnace, a hot oil pump, an expansion tank, and the like.
4. The user only needs to access the power supply, the inlet and outlet pipes of the medium and some electrical interfaces to use.
Technical Parameters
| Technical Parameters Of Electric Thermal Oil Boiler | ||||||||||||
| parameter name | Unit | YDW-24 | YDW-36 | YDW-54 | YDW-72 | YDW-120 | YDW-180 | YDW-240 | YDW-270 | YDW-360 | YDW-1000 | YDW-1440 |
| Rated thermal power | kw | 24 | 36 | 54 | 72 | 120 | 180 | 240 | 270 | 360 | 1000 | 1440 |
| oil capacity | m³ | 0.015 | 0.023 | 0.03 | 0.081 | 0.1 | 0.14 | 0.18 | 0.2 | 0.25 | 0.85 | 1.3 |
| Working pressure | mpa | 0.22 | 0.22 | 0.22 | 0.32 | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | 0.7 | 0.8 |
| Design pressure | mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.7 | 0.7 | 0.7 | 0.7 | 1 | 1 |
| Whole installed capacity | kw | 28 | 40 | 60 | 80 | 130 | 190 | 250 | 280 | 390 | 1050 | 1550 |
| Medium highest temperature | ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 391 | 320 | 320 |
| Component power per group | kw | 12 | 12 | 18 | 24 | 30 | 30 | 30 | 30 | 392 | 40 | 40 |
| Medium circulation volume | m³/h | 8 | 8 | 8 | 12.5 | 20 | 20 | 40 | 40 | 40 | 100 | 100 |
| DN of oil outlet | mm | 50 | 50 | 50 | 50 | 65 | 65 | 65 | 65 | 80 | 125 | 125 |
| Voltage | V | 380V | ||||||||||
| External dimension | mm | 1800*600*1650 | 1800*850*1650 | 1800*850*1650 | 1900*1200*1800 | 2200*1200*2200 | 2200*1200*2200 | 2200*1200*2200 | 2200*1500*2600 | 2200*1500*2600 | 4000*2200*2600 | 4500*2300*2920 |
